The Photobooth Management Dashboard was developed by IMeTech Engineering, in
collaboration with R2R Engineering, as a custom solution for centrally managing an
entire fleet of unattended photobooths. The system combines a local agent on each
booth PC with a central web dashboard, so the status, payments and faults of every
location can be monitored and controlled from a single place.
Each booth runs a set of local scripts that automatically start every required program after boot and
continuously monitor their operation. A watchdog detects freezes and crashes and
restarts applications automatically, while hardware such as the printer, paper supply, camera and
payment terminal is constantly checked with automatic detection and recovery. When something fails,
an on-screen message is shown, the full payment chain is recorded and the system keeps structured
logs. The entire installation runs through a single setup script.

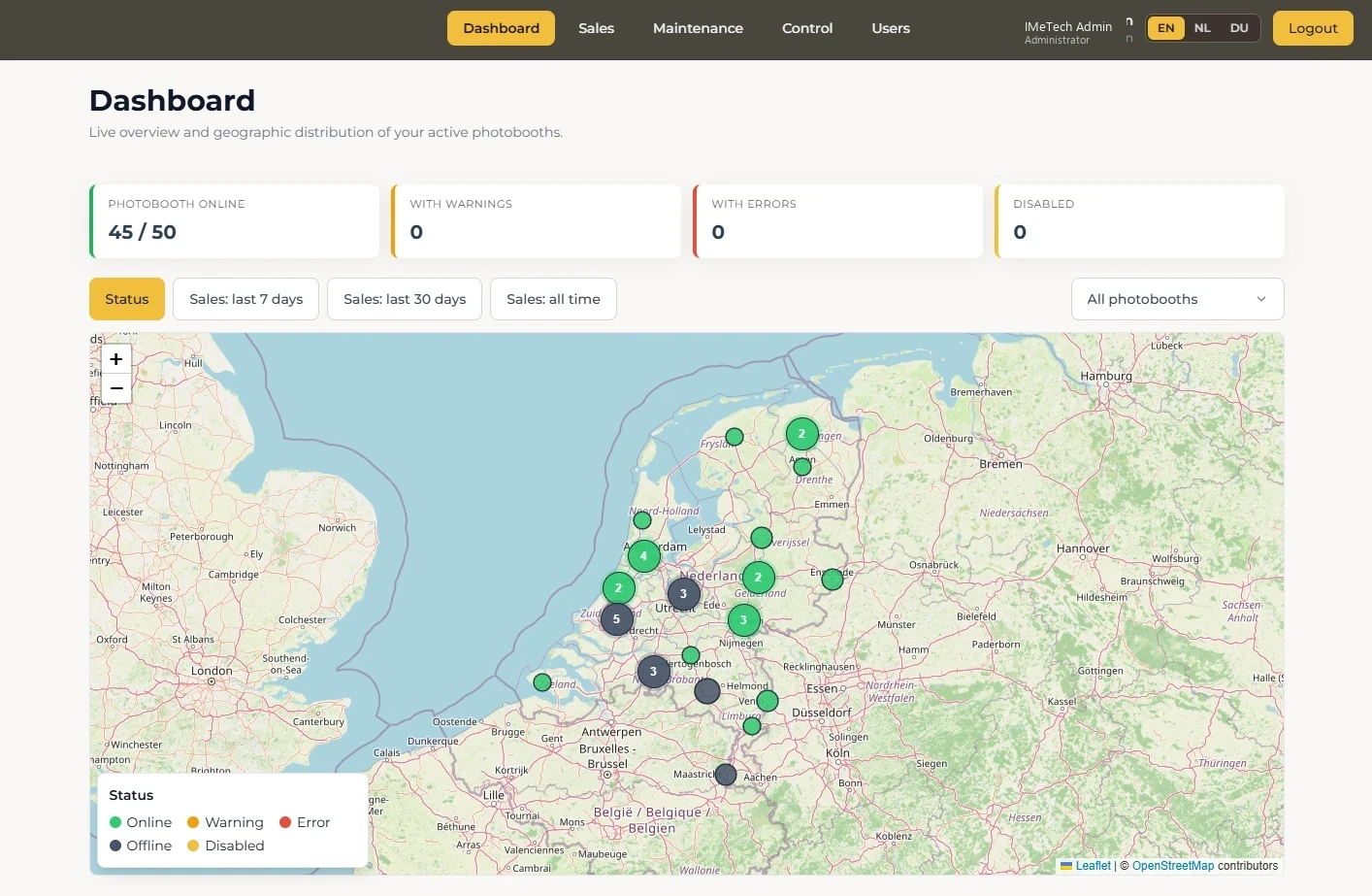

The central dashboard is built on a Node.js/Express backend with a
React frontend and a PostgreSQL database. It collects logs and

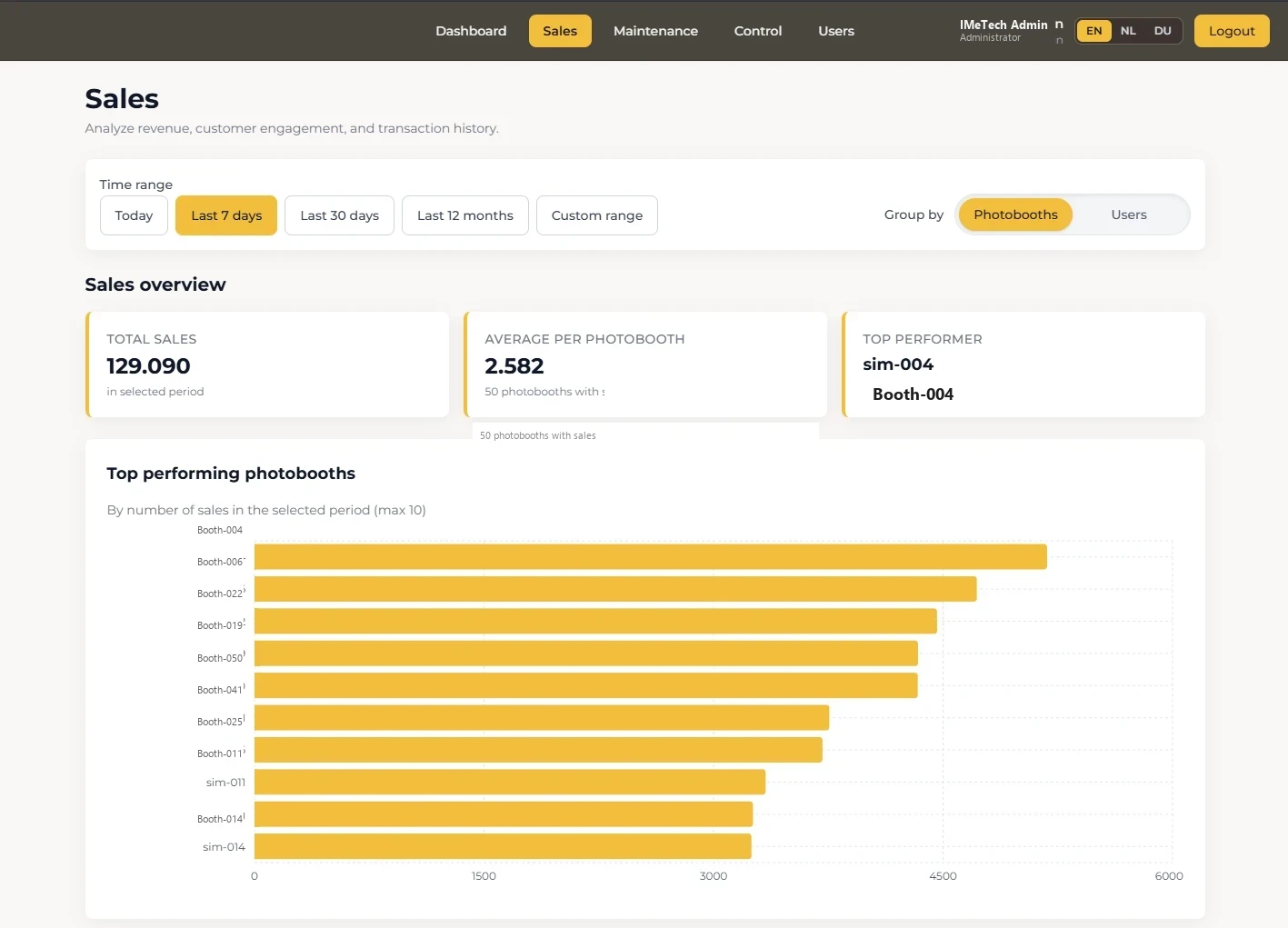

heartbeats from all booths and provides a real-time overview of online/offline status, revenue,
errors and printer and paper status. Access is governed by role-based authentication (JWT), charts

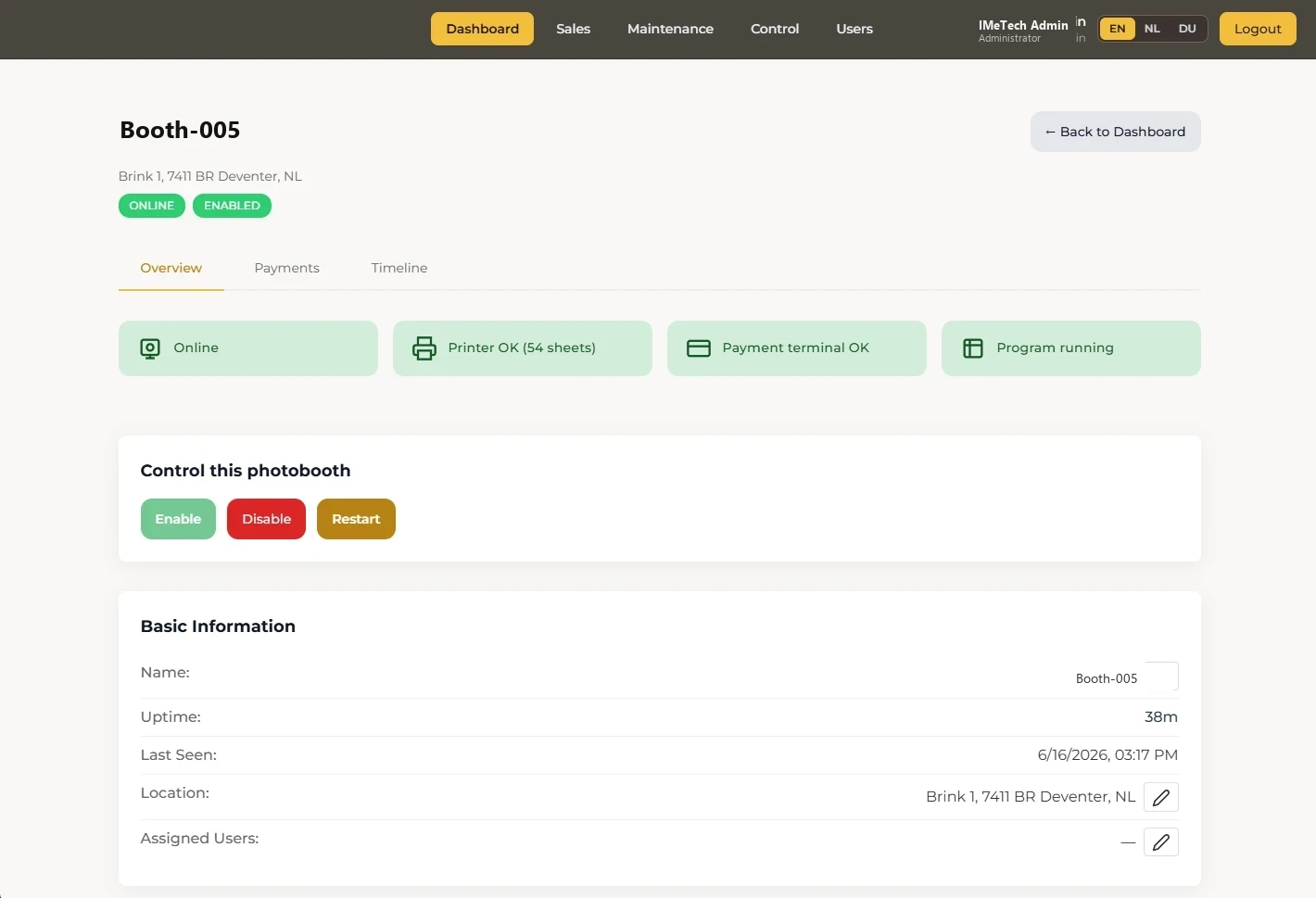

visualise trends, and booths can be controlled remotely from the dashboard — enabling and disabling
them, sending commands and reading out all data.
IMeTech handled the complete journey: from the local automation and monitoring to the server
architecture, database and web interface. The result is a scalable management system that grows to
hundreds of booths, limits downtime and lets operators intervene quickly and remotely.
01 · Who it is for
Who is this for?
This dashboard suits operators running unattended equipment across multiple sites, such as photobooth rental businesses, vending machines or similar self-service setups. Anyone who wants to know at a glance whether everything is running properly, without visiting in person after every fault, will recognise the problem this solves.
02 · What makes it special
What makes it special?
What stands out is how much the system looks after itself. A local watchdog restarts stalled components automatically, while the central dashboard brings every location together in one real-time overview. That lets an operator see what's happening and step in remotely, rather than only finding out after a booth has been down for hours.
